Panasonic A6 Motor & Driver Instruction 3.2 Control Block Diagram

Abstract

The control block diagram of the Panasonic A6 series AC servo motor driver will help the automation system designer better understand the control philosophy of the motor.

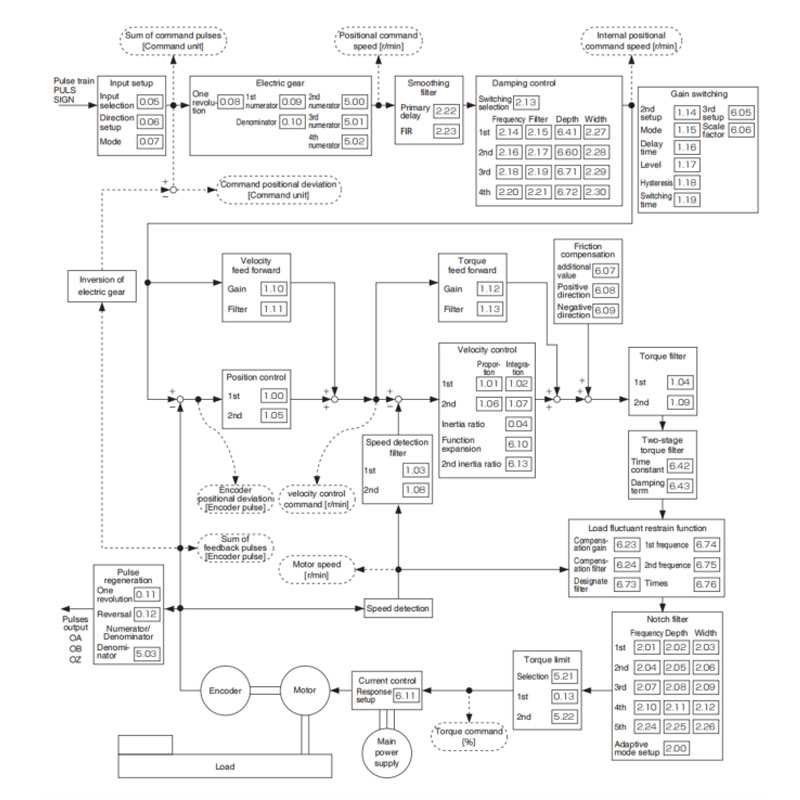

• Position Control Mode (Two-degree of freedom control noneffective)
panasonic a6 servo motor

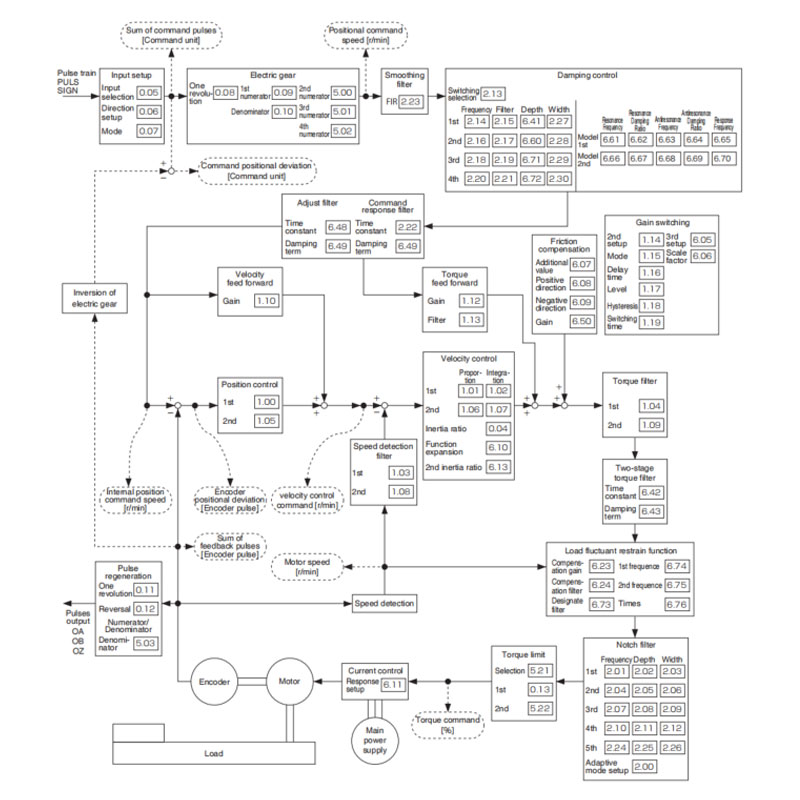

• Position Control Mode (Two-degree of freedom control effective)
panasonic a6 servo motor

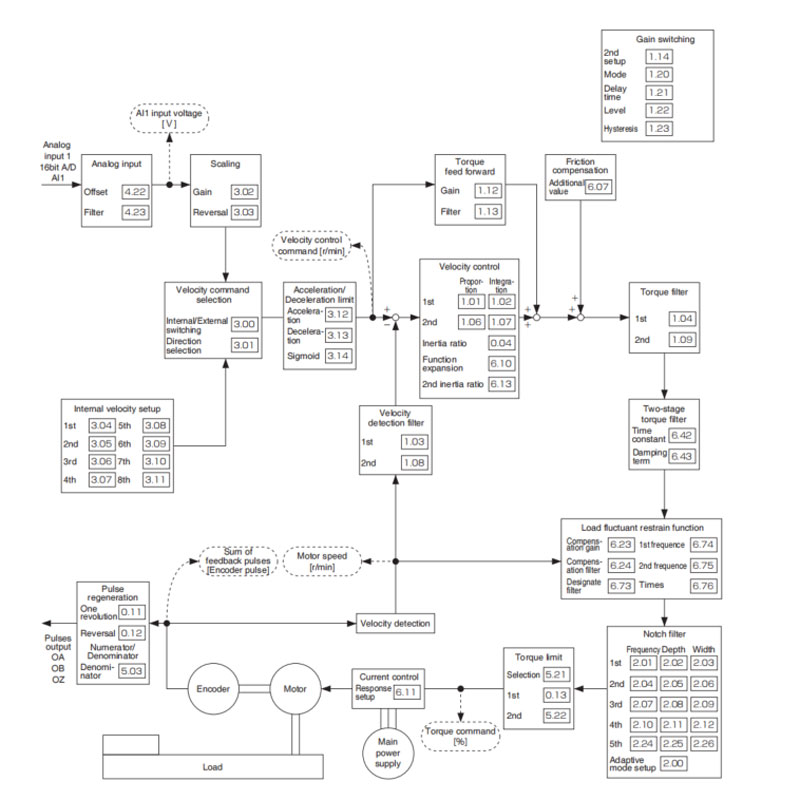

• Velocity Control Mode (2DOF control noneffective)
panasonic a6 servo motor

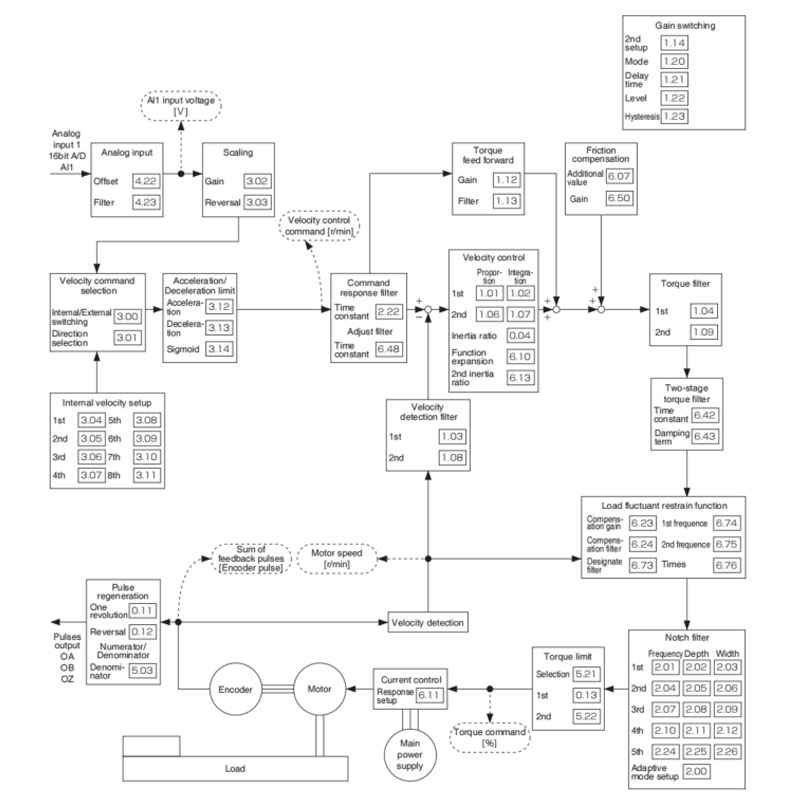

• Velocity Control Mode (2DOF control effective)
panasonic a6 servo motor

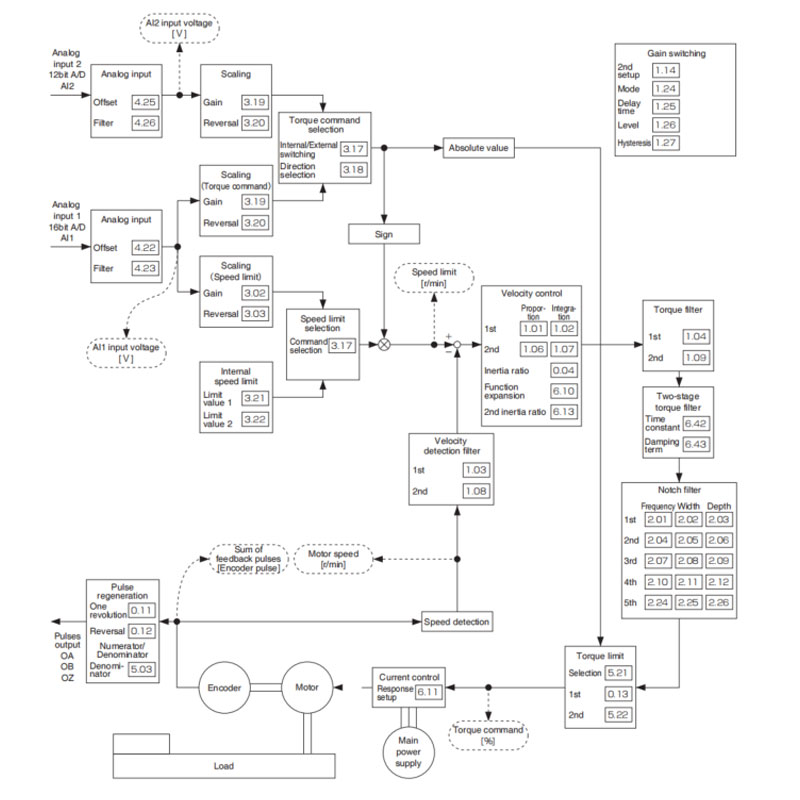

• Torque Control Mode
panasonic a6 servo motor

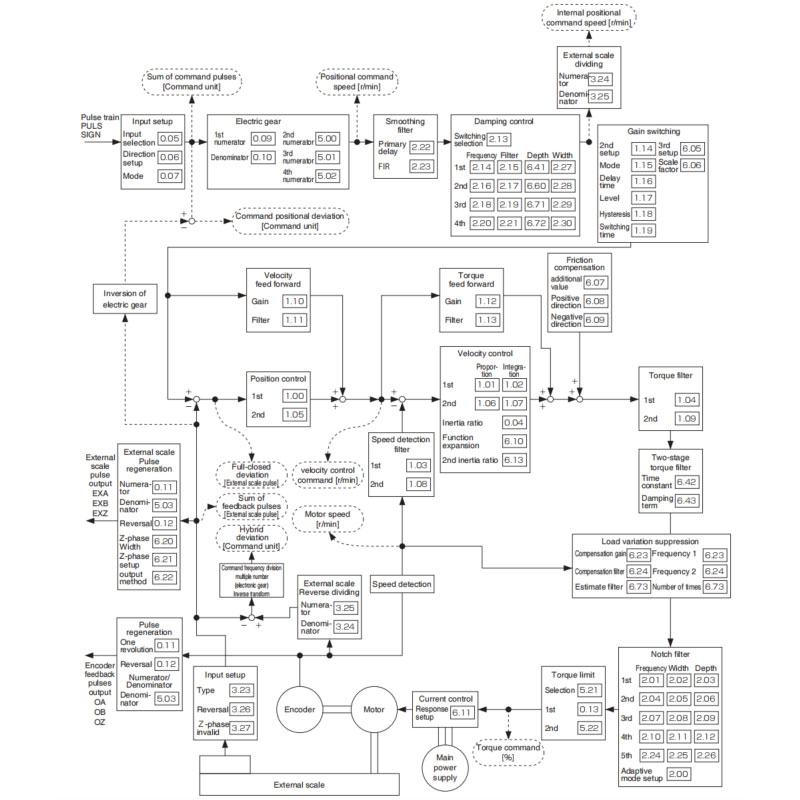

• Full-closed Control Mode (Two-degree-of-freedom control noneffective)
panasonic a6 servo motor

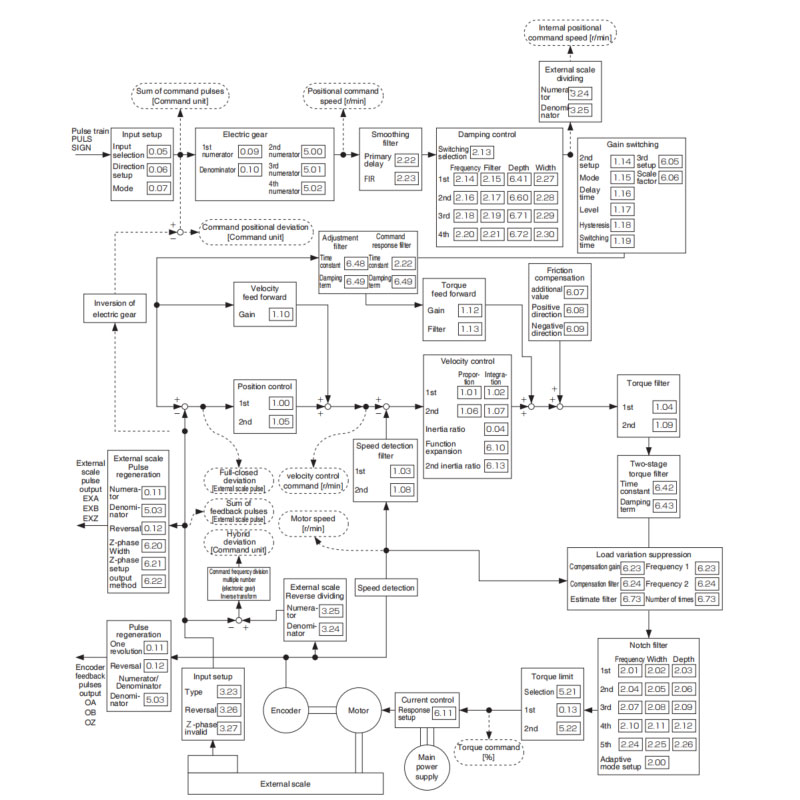

• Full-closed Control Mode (Two-degree-of-freedom control effective)
panasonic a6 servo motor
  • P.3-21 "Wiring example of position control mode"
  • P.3-23 "Connecting example to host controller"
  • P.3-33 "Inputs and outputs on connector X4"
  • P.4-2 "List of Parameters"
